Lab Communication Devices Micro Drop Test Machine Servo Control

Name: Lab Communication Devices Micro Drop Test Machine Servo Control
Brand: Infinity Machine
Price: 1 USD

Brand Name : Infinity Machine

Model Number : DT3030

Certification : CE, ISO

Place of Origin : Made in China

MOQ : 1 set

Price : Negotiable

Payment Terms : D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 200 sets per month

Delivery Time : Phone Light Drop Test Apparatus: Shipped in 15 days after payment

Packaging Details : Micro Drop Tester Apparatus Standard export wooden case with operation manual and video inside.

Products : Mobile Phone Drop Test Apparatus

Test load : 1Kgf, 2Kgf（max）

Drop height : 0 - 300mm (or specified)

Test speed : 5 - 25 cycles/min

Test cycle : 1~999,999times (cycle)

Dimension : W850xH370xD850mm

Weight : About 80kg

Power supply : AC220V 50Hz 3A or specified by user

Test amount : 2pcs

Application : Fall drop testing, light drop testing, micro drop testing

Contact Now

Servo Control Micro Drop Test Machine for Lab, Free Fall Light Drop Test Machine, Mobile Phone Micro Drop Test Machine

Model: DT3030

Specification:

Products	Mobile Communication Devices Micro Drop Test Machine
Model	DT3030
Test amount	2 PCS
Test load (max)	2Kgf (max)
Drop height	0 - 300mm (or specified)
Test speed	5 - 25 cycles/min
Test cycle	1~999,999times (cycle)
Dimension (WxDxH)	850x370x850mm
Weight	About 80kg
Air source	≥0.5MPa
Power supply	AC220V 50Hz 3A or specified by user

Application:

Mobile Phone Devices Micro Drop Test Machine is apply for micro-drop repeat testing of mobile phone, tablets, electronic dictionary, etc. To check if the products function normal or not after certain cycles tests.

Features:

(1) All the testing conditions is inputted by touch panel directly.

(2) Adopt Japan SMC precise pneumatic component, durable using.

(3) Adopt touch panel+PLC as program control.

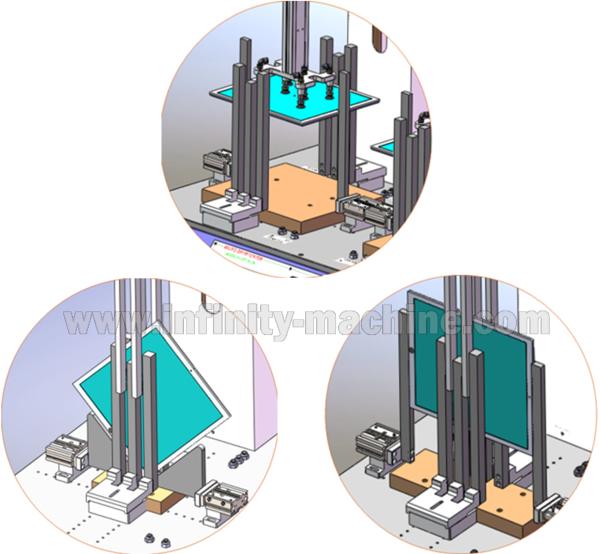

Test Introduction:

1. Faces drop test

2. Sides drop test

3. Corner test
